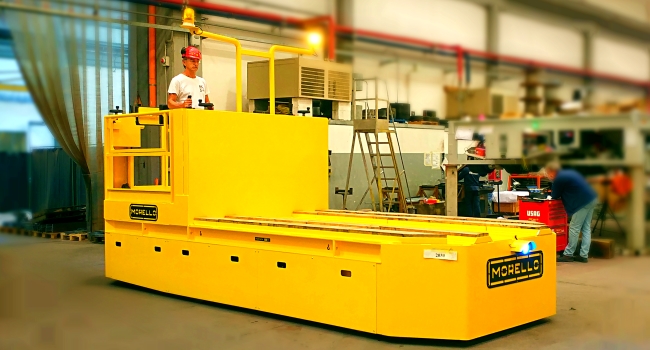

Morello has engineered and manufactured a die transfer cart specifically designed for transporting automotive dies weighing up to 50 tons.
Onboard control stations for maximum safety
This cart reaches a top speed of 6 km/h, allowing the operator to control it directly from onboard driving stations. To ensure optimal visibility and safety during operation, even in reverse, there are 4 interlocked control stations positioned around the vehicle.
Each station is equipped with:
- A steering wheel
- A joystick for speed control
- An LED display showing wheel orientation
- An emergency stop button
- A dead man’s pedal for added safety
Durable design, maneuverability, and safety features
The cart’s loading bed features hardwood boards to protect the die surfaces from damage during transport.
Designed with two fully steerable axle lines, the 50-ton transfer cart offers a minimized turning radius, enabling maneuverability even in tight spaces.
Powered by high-capacity batteries, the cart delivers up to 8 hours of continuous operation. It is also equipped with hydraulic brakes to ensure quick and safe stopping, even under full load and at maximum speed.
For added workplace safety, the die transfer cart includes 2 flashing warning lights and 2 forward-facing blue spotlights that project visible light beams several meters ahead, alerting nearby personnel of its approach.
Like all Morello’s machines, this die transfer cart can be fully customized to meet specific operational requirements.
Technical Specifications
Model: SGAI VC
Load capacity: 50 ton
Dimensions: 5,800 x 2,250 mm
Key features:
- Steering system: Double axle (VC)
- Power supply: battery-powered
- Traction motors: AC motors
- Steering motors: AC motors
- Speed: 5 km/h fully loaded, 6 km/h unloaded
- Battery range: up to 8 hours of continuous operation
- Control mode: onboard control stations
Optional:
- Explosion-proof versions available (compliant with Class 1 and 2, Division 1 and 2, Zone 1 and 2 for dust and gas environments)
