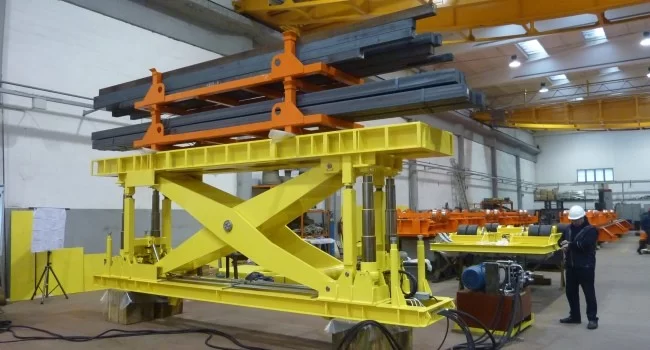

45-ton capacity lifting platform: revolutionizing heavy load operations

Precision engineering meets industrial power in MORELLO’s 45-ton capacity lifting platform, specifically designed for the most demanding heavy load operations. When industrial environments require the vertical movement of massive components, standard lifting solutions often fall short. This robust lifting platform represents the culmination of MORELLO’s expertise in heavy material handling, offering industrial engineers and operations directors a reliable solution for managing extreme weights with exceptional control. With a lifting capacity of 45 tons and customizable dimensions, this platform addresses the complex challenges faced by professionals in energy, construction, and logistics sectors worldwide. The system combines structural integrity with operational precision, enabling the safe elevation of industrial trucks, manufacturing equipment, and other substantial loads. Each platform is engineered with safety mechanisms that ensure stability throughout the lifting process, making it an indispensable asset for facilities that demand uncompromising performance in their material handling infrastructure.

Advanced precision and safety for heavy-duty industrial operations

In the realm of industrial material handling, the capability to lift and position extremely heavy loads with precision and safety represents a critical operational requirement. MORELLO’s 45-ton capacity lifting platform stands as a pinnacle achievement in heavy-duty lifting technology, engineered specifically for operations where conventional lifting methods prove inadequate.

This robust lifting solution addresses the complex challenges faced by industrial facilities that routinely handle massive components. With dimensions of 6,000 x 1,000 mm and a lifting stroke of 1,000 mm, the platform provides substantial workspace while delivering impressive vertical travel. The system employs four telescopic hydraulic cylinders that work in synchronized harmony to ensure stable, controlled elevation even when managing asymmetrical loads.

What distinguishes this lifting platform is its integration of advanced safety features with industrial-grade performance. At the completion of the lifting cycle, four automatic locking devices engage to secure the platform in its elevated position, eliminating reliance solely on hydraulic pressure for sustained elevation. This redundant safety approach is essential when personnel are working with or around suspended loads weighing up to 45 tons.

The platform’s versatility extends to its installation options. Depending on facility requirements, it can be bolted directly to existing flooring or installed within a custom-designed pit for flush integration with the surrounding surface. This flexibility allows implementation across diverse industrial environments without requiring extensive facility modifications.

Powered by an AC motor connected to the electrical grid, the system achieves complete elevation in approximately 80 seconds—an impressive rate considering the substantial weights involved. The electrical power system eliminates the emissions and maintenance concerns associated with combustion engines, making the platform suitable for indoor applications where air quality is a consideration.

Industrial engineers in automotive manufacturing have found particular value in this lifting solution for elevating complete industrial trucks during assembly, maintenance, or inspection processes. However, the platform’s applications extend across numerous sectors where heavy load manipulation is required:

  • Energy sector: Positioning of turbine components and generator assemblies
  • Aerospace: Elevation of aircraft sections during manufacturing
  • Construction: Lifting of precast concrete elements and structural steel
  • Heavy manufacturing: Positioning of machinery during installation

For operations in potentially explosive atmospheres, MORELLO offers specialized configurations that comply with ATEX, IEC Ex, or Hazloc standards. This adaptability ensures that even facilities with strict safety requirements can implement high-capacity lifting solutions without compromising regulatory compliance.

Engineering excellence in industrial lifting solutions

Behind MORELLO’s 45-ton capacity lifting platform lies a sophisticated engineering approach that transforms complex industrial challenges into practical solutions. The development of high-capacity lifting equipment requires a multidisciplinary understanding of structural mechanics, hydraulic systems, electrical engineering, and safety protocols—all areas where MORELLO has established expertise through decades of industrial equipment manufacturing.

The platform’s core engineering brilliance begins with its load distribution system. Unlike conventional lifts that may concentrate pressure at specific points, this 45-ton platform utilizes a balanced force distribution framework that disperses weight evenly across its structure. This engineering principle not only extends the operational lifespan of the equipment but also minimizes floor loading concerns in facilities where structural limitations exist.

The hydraulic system powering these platforms represents another dimension of engineering sophistication. Rather than employing a single high-capacity cylinder—which would create potential stability issues—MORELLO engineers implemented a synchronized quad-cylinder design. This approach ensures that even when loads are not perfectly centered, the platform rises evenly without dangerous tilting. The hydraulic system incorporates precision flow control valves that maintain consistent lifting speeds regardless of load variations, a critical factor when handling delicate industrial components despite their substantial weight.

Material selection plays a crucial role in the platform’s durability and performance. High-tensile steel alloys form the structural components, offering exceptional strength-to-weight ratios that maximize lifting capacity without creating an unnecessarily massive unit. Critical wear surfaces feature specialized treatments that resist abrasion and fatigue, extending maintenance intervals even in continuous operation environments.

The control system governing the lifting operations balances technological sophistication with operator-friendly interfaces. Programmable logic controllers (PLCs) monitor multiple parameters simultaneously, including:

  • Hydraulic pressure across all cylinders
  • Platform levelness during elevation
  • Load distribution sensors
  • Safety interlock status
  • Emergency stop system readiness

This intelligent monitoring occurs without requiring operators to possess advanced technical knowledge, as the interface provides straightforward controls and clear status indicators. For facilities requiring detailed operational data, the system can be configured to integrate with factory management systems, providing real-time performance metrics and maintenance forecasting.

MORELLO’s engineering team employs finite element analysis during the design phase, subjecting virtual prototypes to stresses exceeding normal operational parameters. This computational modeling identifies potential structural weaknesses before physical construction begins, ensuring that the final product delivers reliable performance even under extreme conditions. Physical prototypes undergo rigorous real-world testing, including accelerated lifecycle testing that simulates years of operation compressed into intensive evaluation periods.

The culmination of these engineering practices is a lifting platform that doesn’t merely meet industry standards—it establishes new benchmarks for performance, reliability, and safety in heavy load operations. This engineering excellence translates directly to operational benefits for industrial facilities, reducing downtime and maximizing productivity when handling their most substantial components.

Technical specifications and operational capabilities

Understanding the precise technical parameters of MORELLO’s 45-ton capacity lifting platform provides industrial decision-makers with the critical information needed to evaluate its suitability for specific operational requirements. The platform’s capabilities extend beyond its impressive weight capacity, encompassing a range of performance metrics that define its practical applications in industrial environments.

The platform’s foundational specifications establish its physical parameters and core capabilities:

  • Maximum load capacity: 45 tons (99,000 pounds)
  • Platform dimensions: 6,000 x 1,000 mm (approximately 19.7 x 3.3 feet)
  • Vertical travel distance: 1,000 mm (3.3 feet) from lowest to highest position
  • Complete lifting cycle time: 80 seconds from fully lowered to maximum height
  • Power source: AC electric motor connected to facility power grid

The hydraulic system operates at pressures calibrated specifically for heavy-duty industrial applications, with integrated pressure relief valves that prevent system damage during overload conditions. Hydraulic fluid reservoirs are sized to maintain optimal operating temperatures even during extended operation cycles, with thermal monitoring systems that alert operators if temperatures approach levels that could affect performance or component longevity.

From an operational perspective, the platform demonstrates exceptional versatility across various working conditions. The lifting mechanism maintains consistent performance across its entire rated load range, with no significant speed reductions even when approaching maximum capacity. This consistency allows for predictable operation timing when integrating the platform into sequential manufacturing processes where scheduling precision matters.

The platform’s control system offers multiple operation modes to accommodate different workflow requirements. Standard operation provides smooth, continuous movement throughout the lifting cycle, while precision positioning mode enables incremental adjustments as small as 5mm for exact alignment with adjacent equipment or components. An optional remote control system allows operators to manage lifting operations from a safe distance when handling particularly large or unwieldy loads.

Power efficiency represents another significant technical achievement. Despite its substantial lifting capacity, the electric drive system optimizes energy consumption through intelligent power management. The system draws maximum current only during the initial lifting phase, then reduces consumption during steady-state operation. When holding loads at fixed elevations for extended periods, the mechanical locking system engages automatically, allowing the hydraulic system to depressurize and eliminating unnecessary power consumption.

Environmental adaptability extends the platform’s operational range. Standard configurations operate effectively in ambient temperatures from 0°C to 40°C (32°F to 104°F), while specialized versions are available for extreme environments, including cold-weather packages for unheated facilities and high-temperature modifications for foundries and other heat-intensive operations. The electrical components feature IP65-rated enclosures that resist dust and moisture ingress, enabling reliable performance even in challenging industrial atmospheres.

When integrated into automated manufacturing environments, the platform’s control system can interface with facility management software through standard industrial protocols. This connectivity enables coordinated operation with adjacent material handling equipment, creating seamless workflow automation for complex manufacturing processes involving heavy components.

Customization options for diverse industrial applications

While MORELLO’s 45-ton capacity lifting platform delivers exceptional performance in its standard configuration, the company recognizes that industrial operations often present unique challenges requiring tailored solutions. The platform’s modular design philosophy enables extensive customization without compromising structural integrity or operational reliability, allowing industrial engineers to obtain equipment precisely matched to their specific requirements.

Platform dimension modifications represent one of the most frequently requested customizations. Though the standard 6,000 x 1,000 mm platform accommodates many industrial loads, MORELLO regularly produces variants with altered dimensions to handle specialized components. Wider platforms support items with unusual geometries, while extended length options accommodate elongated loads such as structural beams or vehicle chassis. Each dimensional modification undergoes rigorous structural analysis to ensure that load-bearing capacity remains consistent across the entire platform surface.

The lifting stroke can be adjusted to match facility requirements, with extended travel options available up to 1,500 mm for applications requiring greater vertical movement. For operations with height restrictions, low-profile configurations minimize the platform’s collapsed height while maintaining full lifting capability. These stroke modifications often involve recalibration of the hydraulic system to maintain optimal lifting speeds throughout the extended or compressed range of motion.

Surface treatments and platform materials can be customized based on the specific materials being handled:

  • Stainless steel construction for corrosive environments or clean room applications
  • High-friction surface coatings that prevent load shifting during elevation
  • Cushioned surfaces for delicate components requiring protection from metal-to-metal contact
  • Specialized coatings for extreme temperature environments or chemical exposure
  • Integrated roller systems that facilitate load transfer to and from the platform

Control system customizations adapt the platform to specific operational workflows. Touch-screen interfaces can replace standard controls for operations requiring detailed parameter adjustments, while programmable position presets allow operators to automatically move to frequently used heights with a single command. For facilities with comprehensive automation, the control system can be integrated with manufacturing execution systems through industrial Ethernet protocols, enabling coordinated operation with adjacent equipment.

Power source alternatives accommodate facilities where standard electrical connections are impractical. Battery-powered options provide mobility when fixed power supplies are unavailable, while pneumatic systems offer solutions for locations where electrical equipment presents safety concerns. For outdoor applications or temporary installations, diesel hydraulic power units deliver independent operation without requiring connection to facility infrastructure.

Safety feature enhancements can be implemented based on specific operational risks. Light curtains detect personnel presence in the platform’s movement zone, automatically halting operation if safety perimeters are breached. Load sensing systems can be calibrated to specific weight distributions, providing warnings if loads are positioned suboptimally. For applications involving combustible materials, explosion-proof components meeting ATEX, IEC Ex, or Hazloc standards ensure operational safety in potentially hazardous atmospheres.

MORELLO’s engineering team collaborates directly with clients during the customization process, conducting site surveys and operational analyses to identify the optimal configuration for each application. This consultative approach ensures that every 45-ton capacity lifting platform delivers maximum value within its specific operational context, with customizations that enhance productivity while maintaining the core reliability that distinguishes MORELLO’s heavy-duty equipment.

Safety features and compliance standards

When managing loads of up to 45 tons, safety becomes not merely a design consideration but a fundamental imperative. MORELLO’s approach to safety engineering in their heavy-duty lifting platforms encompasses multiple layers of protection, creating redundant systems that minimize operational risks even under exceptional circumstances. This comprehensive safety philosophy addresses both anticipated operational hazards and unlikely emergency scenarios.

The platform’s mechanical safety features begin with its structural design. Load-bearing components are engineered with safety factors that exceed industry standards, ensuring structural integrity even when subjected to dynamic loads or minor impacts. The automatic locking system represents a critical safety advancement—once the platform reaches its elevated position, four mechanical locks engage independently of the hydraulic system. This mechanical redundancy ensures that even in the event of complete hydraulic pressure loss, the platform remains securely positioned without unexpected descent.

Hydraulic safety systems provide additional protection layers. Velocity fuses installed at each cylinder automatically arrest platform movement if they detect abnormal descent rates indicative of hydraulic line rupture. Pressure-compensated flow control valves maintain consistent lowering speeds regardless of load weight, preventing uncontrolled descent even with maximum capacity loads. The hydraulic circuit incorporates check valves that compartmentalize the system, preventing catastrophic pressure loss if individual components fail.

The electrical control system incorporates multiple safety interlocks:

  • Emergency stop buttons positioned at multiple access points for immediate system shutdown
  • Phase monitoring relays that prevent operation if incorrect power supply conditions are detected
  • Perimeter safety switches that halt operation if maintenance panels are removed
  • Overload detection systems that prevent lifting attempts beyond rated capacity
  • Motion warning indicators providing visual and audible alerts during platform movement

For personnel safety, the platform features anti-slip surface treatments that maintain traction even when exposed to industrial fluids. Guard rails can be integrated into the platform design for applications where operators must ride on the platform during elevation. Toe guards around the perimeter prevent small items from falling into pinch points during platform descent.

MORELLO’s lifting platforms comply with rigorous international safety standards, including the EU Machinery Directive 2006/42/EC and relevant ANSI standards for industrial equipment. Each unit undergoes comprehensive factory acceptance testing, including load testing at 110% of rated capacity to verify safety system functionality under stress conditions. Documentation packages include detailed risk assessments and recommended maintenance schedules to maintain safety compliance throughout the equipment’s operational life.

For specialized environments with unique safety requirements, MORELLO provides tailored compliance solutions. Platforms intended for explosive atmospheres undergo certification to ATEX Directive 2014/34/EU, IEC Ex standards, or North American Hazloc requirements depending on installation location. For pharmaceutical or food production environments, materials and surface finishes can meet FDA requirements or ISO 14644 cleanroom standards without compromising lifting performance.

Safety training forms an integral component of MORELLO’s implementation process. Technicians provide comprehensive operator training during installation, covering normal operation procedures, emergency protocols, and basic troubleshooting. This training ensures that facility personnel understand not just how to operate the equipment, but how to recognize potential issues before they develop into safety concerns.

Advancing heavy load operations with engineered excellence

The 45-ton capacity lifting platform represents MORELLO’s commitment to solving the most challenging industrial material handling requirements through innovative engineering and uncompromising quality. By combining robust structural design, advanced safety systems, and adaptable customization options, these platforms deliver exceptional performance across diverse industrial applications. From automotive manufacturing to energy production, operations that depend on the precise movement of substantial loads benefit from equipment specifically engineered to handle these demanding requirements safely and efficiently. The platform’s integration of mechanical reliability with technological sophistication creates a solution that enhances productivity while minimizing operational risks.

Ready to transform your heavy load handling capabilities? Contact MORELLO’s engineering team today to discuss how a customized 45-ton capacity lifting platform can optimize your specific industrial operations. Our experts will analyze your requirements and develop a tailored solution that addresses your unique material handling challenges with precision-engineered excellence.
