The integration of advanced lifting systems into industrial transfer cars represents a significant evolution in material handling solutions for heavy industries. These robust systems, capable of handling loads up to 40 tons, demonstrate how modern industrial transfer solutions can effectively address the unique challenges faced by manufacturing facilities.
MORELLO has recently strengthened its presence in the Russian market by delivering custom-engineered transfer cars with integrated lifting platforms designed specifically for pipe mill applications. These vehicles combine horizontal transportation capabilities with vertical lifting functionality, creating versatile systems that optimize workflow in demanding industrial environments.
Russian manufacturing facilities, particularly in sectors like pipe production, steel processing, and heavy machinery, require transfer solutions capable of handling substantial loads while maintaining operational precision. The integration of lifting platforms directly into transfer cars eliminates the need for separate lifting equipment, streamlining production processes and reducing handling time.
Our comprehensive approach to designing and manufacturing these specialized vehicles takes into account the unique operational conditions found in Russian industrial facilities, including temperature variations, space constraints, and specific safety regulations. The following sections explore the technical specifications, advanced features, control systems, power transmission solutions, and customization capabilities that make MORELLO’s industrial transfer cars with integrated lifting systems ideally suited for deployment in Russian manufacturing environments.
Technical specifications of transfer cars

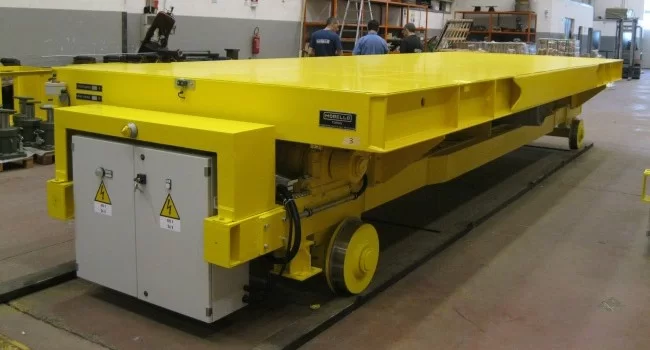

MORELLO’s transfer cars are engineered to withstand demanding industrial conditions while maintaining exceptional performance standards. The SBR 4R-E model exemplifies our technical capabilities with its impressive 40-ton load capacity and substantial platform dimensions of 13,500 x 3,000 mm, providing ample space for transporting large pipe sections and related materials.
These robust vehicles feature a reinforced steel frame construction designed to withstand the continuous operational demands of heavy manufacturing environments. The structural integrity of these transfer cars is enhanced through strategic reinforcement at critical stress points, ensuring longevity even under maximum load conditions repeatedly experienced in pipe production facilities.
The integrated lifting platform represents a key technical innovation, with hydraulic systems capable of precise vertical movement while maintaining platform stability. This vertical travel capability allows for seamless transitions between different production levels without requiring additional lifting equipment or transfer stations.
Mobility is achieved through a multi-wheel configuration with individual drive motors, providing the distributed power necessary to move substantial loads across factory floors. The wheel arrangement is specifically engineered to distribute weight evenly, protecting floor surfaces while ensuring smooth operation even when navigating through tight spaces common in Russian industrial facilities.
Environmental adaptability features include specialized components rated for operation in temperature ranges typical of Russian industrial environments, with weatherproofing considerations for facilities where exposure to external conditions may occur.
Advanced features of integrated lifting platforms for heavy industrial applications
The integrated lifting platforms in MORELLO’s industrial transfer cars represent a significant engineering achievement, particularly valuable for manufacturing environments where efficiency and reliability are paramount. The lift-up transmission system employs a sophisticated double-stage reduction mechanism that provides both power and precision during vertical movement operations. This dual-stage approach ensures smooth transitions between heights while maintaining platform stability even when handling asymmetrical loads.
Safety features are integrated throughout the lifting system design, including load sensors that continuously monitor weight distribution across the platform surface. These sensors communicate with the control system to prevent operation if unsafe load conditions are detected. Additional safety measures include emergency stop functions, mechanical locking mechanisms that engage automatically when the platform is stationary, and redundant hydraulic circuits to maintain position even in case of power failure.
The lifting platform’s edge detection system uses pressure-sensitive strips to immediately halt operation if obstructions are encountered during vertical movement. This protection extends to both the lifting mechanism and transported materials, preventing damage while safeguarding operator safety.
For pipe mill applications, the platforms feature specialized surface treatments and materials that resist corrosion from industrial processes. The platform surfaces are engineered with high-friction coatings that prevent load shifting during movement, a critical consideration when transporting cylindrical objects like pipes that might otherwise roll during acceleration or deceleration.
Maintenance accessibility has been prioritized with service points grouped logically and diagnostic ports positioned for easy connection, minimizing downtime in production-critical environments.
Control systems and positioning technology in transfer equipment
The precision and reliability of MORELLO’s industrial transfer cars depend heavily on sophisticated control systems and positioning technologies. At the heart of these systems is the translation control mechanism utilizing absolute encoders, which provide real-time positional data without requiring reset or calibration after power interruptions. This technology ensures consistent accuracy even in demanding industrial environments where power fluctuations may occur.
For container detection and alignment, MORELLO implements a hunting container system based on magnetic sensor technology. These sensors detect metallic targets embedded in floors or attached to containers, allowing the transfer car to automatically align with loading and unloading positions. The magnetic detection works reliably even in environments with dust, steam, or visual obstructions common in industrial settings.
Station positioning is further refined through photoelectric sensors that provide millimeter-level accuracy when approaching fixed loading/unloading points. These sensors use infrared or laser technology to detect reflective targets, enabling precise docking even when handling maximum loads. The system automatically adjusts approach speed based on distance measurements, ensuring smooth deceleration and preventing impact damage.
The control interface features intuitive touchscreen displays with multi-language support for operator convenience. These displays provide real-time diagnostic information, operational status, and maintenance alerts. Remote monitoring capabilities allow technical staff to observe performance metrics and address potential issues before they impact production.
For facilities requiring automated operation, the control systems can interface with factory management software through standard industrial protocols, enabling integration into broader production scheduling and material flow systems without requiring specialized programming.
Power transmission solutions for industrial environments
Reliable power delivery is essential for industrial transfer cars operating in manufacturing facilities, where continuous operation and adaptability to local infrastructure are critical requirements. MORELLO’s transfer cars implement a “Blindotrolley” power supply system, which represents an optimal solution for facilities with defined travel paths. This enclosed conductor bar system provides continuous power without the limitations of battery systems or the restrictions of fixed cables.
The Blindotrolley configuration features a protective housing that shields conductors from dust, moisture, and mechanical damage—particularly valuable in pipe mills where environmental conditions can be harsh. The collector assemblies are engineered with spring-loaded contacts that maintain consistent electrical connection even when traversing joints or experiencing minor misalignments due to floor irregularities.
For data transmission, these industrial transfer cars utilize dual-redundant communication systems. Primary communication occurs through a 5GHz Wi-Fi network optimized for industrial environments with high electromagnetic interference. This is complemented by a secondary coaxial cable antenna system that provides backup communication capabilities when wireless signals might be compromised by structural obstacles or interference.
The power distribution within the vehicle employs industrial-grade components rated for extended temperature ranges, accommodating both the cold winters and warm summers experienced in various regions. Voltage stabilization systems protect sensitive electronic components from grid fluctuations that might otherwise compromise operational reliability.
For facilities with existing power infrastructure, MORELLO’s engineering team customizes the power collection system to interface seamlessly with available supply methods, whether that involves conductor rails, cable reels, or hybrid solutions combining multiple power sources for operational flexibility.
Customization capabilities for specialized material handling requirements
Understanding that each industrial facility presents unique operational challenges, MORELLO approaches each transfer car project with a commitment to customization. The engineering process begins with comprehensive site analysis, including floor load capacity assessment, route mapping, and identification of spatial constraints that might impact vehicle design. This thorough evaluation ensures that the final solution integrates seamlessly with existing infrastructure.
Platform dimensions and configurations can be tailored to accommodate specific product geometries common in pipe manufacturing. Load support systems may include specialized cradles for cylindrical products, adjustable guides for varying diameters, or reinforced sections for concentrated loads. The lifting mechanism itself can be modified to provide different vertical travel ranges based on facility requirements, with options for multi-level positioning or continuous height adjustment.
Control system customization extends beyond basic operational parameters to include integration with facility management systems through standardized industrial protocols. Russian-language interfaces are developed with input from actual operators to ensure intuitive operation and clear communication of system status. Remote monitoring capabilities can be configured to meet specific requirements for data collection and performance analysis.
Environmental adaptations represent another key area of customization, with options for enclosed operator cabins, heating systems for electronic components, and specialized seals and coatings for operation in challenging conditions. For facilities with explosive atmospheres, MORELLO can implement ATEX-compliant components and design modifications that meet strict safety standards.
The modular approach to vehicle design facilitates future modifications as operational needs evolve, protecting the client’s investment by allowing for component upgrades rather than complete system replacement when requirements change.
Engineered excellence for industrial material handling challenges
MORELLO’s industrial transfer cars with integrated lifting systems represent a perfect fusion of engineering innovation and practical application for demanding industrial environments. By combining robust construction, advanced control systems, reliable power transmission, and customizable features, these specialized vehicles deliver exceptional performance in pipe mills and other heavy manufacturing facilities. The successful implementation of these systems demonstrates our commitment to understanding the unique requirements of each industrial context and developing solutions that enhance operational efficiency while maintaining the highest safety standards.
For industrial engineers and operations directors seeking to optimize material handling in manufacturing facilities, MORELLO offers consultation services to evaluate your specific requirements and develop customized solutions. Discover how our expertise in self-propelled industrial carts can transform your heavy load handling operations with integrated lifting capabilities tailored to your exact specifications. Contact our engineering team today to discuss your project requirements.
