In the demanding world of industrial operations, moving massive equipment efficiently and safely represents one of the most significant challenges for facility managers and engineers. Electrohydraulic lifting platforms stand at the forefront of modern heavy load handling technology, combining powerful hydraulic systems with precise electronic controls to create versatile lifting solutions. These specialized platforms deliver exceptional performance where traditional material handling equipment falls short, particularly when dealing with earth-moving machinery, manufacturing components, and other substantial industrial assets weighing dozens of tons.

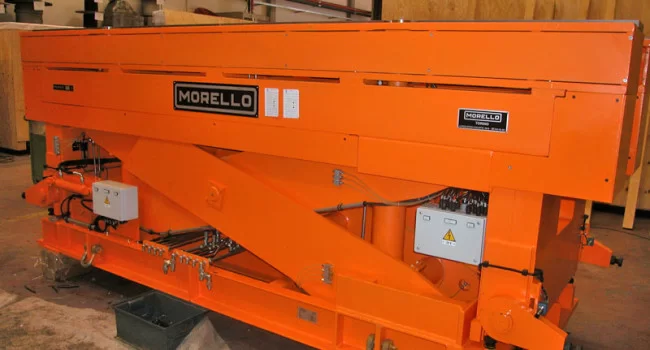

MORELLO‘s advanced electrohydraulic lifting platforms exemplify engineering excellence, offering lifting capacities exceeding 33 tons while maintaining precision control throughout operations. This innovative technology transforms complex load management scenarios into streamlined processes, reducing operational risks and increasing productivity across energy, construction, and logistics sectors where handling massive components is a daily necessity.
The engineering behind electrohydraulic lifting platforms
Electrohydraulic lifting platforms represent a masterful integration of mechanical engineering, hydraulic power, and electronic control systems. At their core, these platforms harness the incompressible nature of hydraulic fluid to generate tremendous lifting force while maintaining precise movement control through sophisticated electronic systems. The genius of this design lies in its ability to multiply input force across a relatively compact footprint, enabling platforms like MORELLO’s 33-ton capacity models to handle earth-moving equipment with remarkable stability.
The engineering challenge in creating effective electrohydraulic lifting platforms involves balancing several critical factors. Engineers must calculate optimal pressure distribution across hydraulic cylinders, determine appropriate fluid viscosity for varying temperature conditions, and design structural components capable of withstanding both static and dynamic loads. The platform’s frame undergoes extensive finite element analysis to identify and reinforce stress points, ensuring structural integrity even when handling asymmetrical loads.
What truly distinguishes modern electrohydraulic lifting platforms is the integration of electronic control systems. These provide operators with millimeter-precise positioning capabilities through proportional control valves and position sensors. This level of precision proves essential when lifting sensitive equipment or when operating in confined spaces where clearances may be minimal. The electronic systems also enable safety features like load monitoring, emergency stop functions, and operational data logging for maintenance planning.
Core components and operational principles
Every electrohydraulic lifting platform for heavy loads relies on several essential components working in harmony to deliver reliable performance. Understanding these elements helps industrial engineers appreciate the sophistication behind these seemingly straightforward machines.
The hydraulic power unit (HPU) serves as the system’s heart, consisting of a reservoir, pump, motor, and control valves. This unit generates the hydraulic pressure necessary to lift massive loads, with industrial-grade systems typically operating at pressures between 3,000 and 5,000 psi. The hydraulic cylinders convert this fluid pressure into linear force, with their diameter directly proportional to the lifting capacity. MORELLO’s heavy-duty platforms utilize synchronized multiple-cylinder arrangements to ensure stable, level lifting even with unevenly distributed loads.
On the electrical side, programmable logic controllers (PLCs) coordinate system functions, processing inputs from sensors and operator controls to manage fluid flow precisely. Position and pressure sensors provide constant feedback, allowing the system to maintain exact positioning regardless of load changes. The structural frame ties everything together, engineered with high-strength steel to withstand not just vertical loads but also the shear forces that occur during loading and unloading operations.
Operationally, these systems follow a straightforward principle: electrical energy powers the hydraulic pump, which pressurizes fluid that flows to the cylinders. As fluid enters the cylinders, the pistons extend, raising the platform. Proportional valves control the flow rate, allowing for smooth acceleration and deceleration. This integration of hydraulic power with electronic control creates a system capable of moving massive loads with precision measured in millimeters.
Advantages of electrohydraulic systems for industrial applications
Electrohydraulic lifting platforms deliver significant operational advantages that make them indispensable in heavy industrial environments. These systems have revolutionized material handling across numerous sectors by combining raw power with sophisticated control capabilities.
The primary advantage lies in the exceptional power-to-size ratio. Hydraulic systems can generate tremendous force from relatively compact components, allowing a heavy-duty lifting platform with electrohydraulic system to handle loads exceeding 30 tons while maintaining a manageable footprint. This density of power proves invaluable in facilities where space optimization directly impacts operational efficiency.
Unlike purely mechanical systems, electrohydraulic platforms offer unparalleled positioning precision. Operators can control movement with millimeter accuracy, essential when handling delicate equipment or performing precise assembly operations. The electronic control systems also enable programmable movement profiles, allowing for customized lifting sequences that can be standardized across operations.
Maintenance considerations further distinguish these systems. The self-lubricating nature of hydraulic fluid extends component life, while the modular design of most platforms facilitates targeted maintenance. When a component does require service, technicians can often isolate that section without disabling the entire system.
Energy efficiency represents another significant advantage. Electrohydraulic systems can maintain loads at height with minimal energy consumption once the position is reached. Additionally, modern systems incorporate energy recovery features, capturing potential energy during descent phases and converting it back into usable power.
Finally, these platforms offer exceptional adaptability across varying environmental conditions. With proper fluid selection, electrohydraulic systems can operate reliably in temperature extremes from subfreezing to intensely hot environments, making them suitable for everything from outdoor construction sites to climate-controlled manufacturing facilities.
Safety features and compliance standards
When handling loads exceeding 30 tons, safety becomes paramount. Modern electrohydraulic lifting platforms incorporate multiple redundant safety systems to protect both operators and valuable cargo. MORELLO’s platforms exemplify this commitment to safety through comprehensive protective features integrated throughout the design.
Advanced electrohydraulic lifting platforms include these critical safety elements:
- Overload protection systems that continuously monitor platform weight and automatically prevent operation if load limits are exceeded
- Emergency lowering valves that allow controlled descent even during power failures
- Velocity fuses that instantly lock hydraulic cylinders if a line ruptures, preventing uncontrolled platform drops
- Pressure relief valves that protect against system overpressurization
- Perimeter safety sensors that detect obstacles and automatically halt operation
These platforms must comply with stringent international standards including ISO 13849 for safety-related control systems, EN 1570 for lifting table requirements, and ANSI MH29.1 for industrial scissor lifts. Compliance extends beyond mechanical features to include operator interface requirements, emergency stop functionality, and maintenance accessibility.
Manufacturers like MORELLO implement comprehensive testing protocols that exceed minimum compliance thresholds. Each platform undergoes load testing at 125% of rated capacity, cycle testing to verify long-term reliability, and stability testing under various load distributions. This rigorous validation ensures platforms perform safely even under challenging conditions.
For facilities implementing these systems, proper operator training remains essential. The most sophisticated safety features cannot replace well-trained personnel who understand platform limitations, recognize potential hazards, and follow established operational procedures. Leading manufacturers provide detailed training materials and on-site commissioning to ensure safe implementation from day one.
Customization options for specific industry needs
The versatility of electrohydraulic lifting platforms stems largely from their adaptability to specific operational requirements across diverse industries. MORELLO’s engineering approach centers on understanding that each industrial application presents unique challenges requiring tailored solutions rather than one-size-fits-all equipment.
In the energy sector, platforms often require explosion-proof components and specialized surface treatments to withstand corrosive environments. These modifications include sealed electrical enclosures, spark-resistant materials, and hydraulic fluids formulated for extreme temperature ranges. For offshore applications, additional corrosion protection and stabilization systems compensate for vessel movement while maintaining precise positioning.
Manufacturing environments benefit from integration capabilities that allow platforms to communicate with production control systems. Custom interfaces enable synchronization with assembly lines, automated guided vehicles, or robotic systems. Platform surfaces can be engineered with rollers, turntables, or specialized fixtures designed specifically for particular components or assemblies.
Construction and heavy equipment industries often require mobile versions of electrohydraulic lifting platforms. These incorporate self-propelled drive systems, terrain-adaptive undercarriages, and weather-resistant controls. Some specialized units feature adjustable platform geometries that can adapt to irregular loads or challenging access conditions.
The aerospace industry demands extraordinary precision combined with specialized handling surfaces. Platforms designed for this sector often include cushioned contact points, electrostatic discharge protection, and ultra-precise leveling systems accurate to fractions of a millimeter. These platforms must maintain perfect horizontal positioning even when supporting asymmetrical loads with shifting centers of gravity.
MORELLO’s approach to customization involves comprehensive consultation with engineering teams to identify specific operational parameters, environmental conditions, and integration requirements before developing tailored solutions that address these unique challenges while maintaining core safety and performance standards.
Elevating industrial efficiency through advanced lifting technology
Electrohydraulic lifting platforms represent the pinnacle of heavy load handling technology, combining raw power with precision control to transform industrial operations. These sophisticated systems enable facilities to move massive components with confidence while maintaining the precision necessary for delicate positioning tasks. As industries continue to push the boundaries of size and weight in manufacturing and construction, the role of these specialized platforms becomes increasingly central to operational success.
MORELLO’s commitment to engineering excellence is evident in every aspect of our electrohydraulic lifting platforms, from the robust structural components to the sophisticated control systems that ensure safe, efficient operation. Our decades of experience designing custom material handling solutions for the world’s most demanding industries translates into platforms that deliver exceptional performance even in challenging environments.
Ready to transform your heavy load handling operations? Contact MORELLO’s engineering team today to discuss your specific requirements and discover how our custom electrohydraulic lifting platforms can elevate your operational capabilities.
